Welding Turntable – The All-Inclusive FAQ Guide

Welding turntables have been one of the easiest and most crucial components of construction projects because of its ideality and functionality. Overall, a welding turntable could make your project feel “complete” whereas missing it might make it seem impossible for a project to finish.

If in any case you’re not sure what a welding turntable is, you are just in the perfect guide!

Our goal for this article is to give you all the ideas about welding turntables – from what it is, how it can help you, where you can use it, as well as the major benefits and drawbacks that it has!

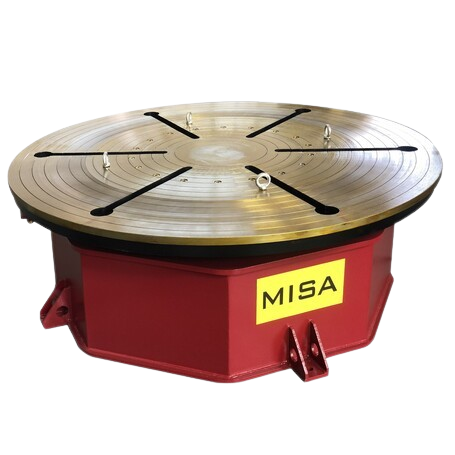

What is a Welding Turntable?

A welding turntable is a piece of welding complimentary equipment that’s used by welders in order for them to have an easier and more efficient welding session. From the term alone, turntables rotate or turn a workpiece on its own, eliminating the need of a welder to move and go around it.

Are There Manual and Automatic Welding Turntables?

Yes, welding turntables can be purchased in either.

Automatic turntables are the type of turntables where it rotates and revolves on its own without the need to control it.

Manual turntables, on the contrary, would need human intervention for it to revolve. It’s usually controlled by a pedal or turned on using a control box. Whichever way it’s controlled, it requires a manual intervention from someone for it to work.

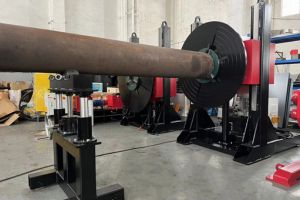

What is Head Stock and Tail Stock?

Headstock and/or Tailstock welding positioners are types of welding positioners that have been specialized to support both the front and rear ends of a given workpiece or infrastructure as it rotates. You’ll typically find them in welding systems and procedures that perform the welding of heavy parts, components, and equipment.

Welding Turntable DIY

Many home welders and technicians try to make their own turntables at home. Doing so eliminates the need to purchase a welding turntable from a dedicated manufacturer, making them save a lot of money while still having a machine or an equipment to use.

There are quite a few different ways of creating a DIY welding turntable, but the best one would be by Ramsey Laser Press Brake.

https://youtu.be/o1G1Pb0arQ4

Welding Turntable vs. Welding Positioner

Do you know the difference between a welding positioner and a welding turntable? While many people think that they are the same, they’re not! The majority of the population are correct when they say that the two (2) complement welding projects, but their use and their distinctions vary.

Welding turntables or rotary welding positioners are equipment where you mount your weldments or workpieces. They usually have flat tops where the workpiece can be mounted on top of it. By default, turntables do not have chucks or jacks on them.

On the other end of the spectrum, welding positioners also help by rotating and repositioning the workpiece or the weldment. The difference between them would be their positions. Turntables are “tables,” where the weldment or the workpiece lays flat out on the table, while positioners tilt and rotate the workpiece depending on the angle that’s needed.

A slight difference, but the uniqueness of how they’re used is crucial.

Welding Positioner Kit

A welding positioner kit is a type of product you can purchase that will give you an entire kit filled with all the things you need in order to create or produce a welding positioner or welding turntable. One good example is CentriFlat’s DIY welding turntable positioner.

It includes a manual that would help you understand how to assemble the positioner as well as all the parts and components that go with it.

It’s designed to help you identify what’s needed for a welding turntable to be successful and to be safe for use. Ideally, it’s not something you’ll use for industrial projects because the safety and security of the materials haven’t been certified. However, you can use it for home welding projects, as well as checking whether or not a part would work from the kit.

You can check out CentriFlat’s DIY welding turntable kit here à https://weldtables.com/products/fabturn-diy-welding-positioner-kit-a-welding-turn-table-for-the-everyman

How Are Welding Turntables Used?

The process or methodology of using a rotary welding positioner is not as complex as you think. As a matter of fact, we can sum it up in just a few simple steps!

1. The first step is to load and mount the weldment or the workpiece onto the welding turntable.
2. Ensure that the workpiece or weldment is latched onto the table. Bolts and chucks could be used, but proper positioning is just the key.
3. Once done, start the welding process. If you’re using a manual turntable, step on the pedal so that it turns and revolves. Otherwise, set the machine to how fast you want it to revolve and rotate.
4. Keep it at the pace where you’re comfortable so that you don’t mess the weld up.
5. Once done, turn the machine off or unplug it from the main power.
6. Unmount or unload it from the welding turntable and mount the next one you’ll be working on.

We told you, operating or making a welding turntable work is as easy as how you would operate any type of machine or equipment.

Where Are Welding Turntables Used?

Welding turntables are used in a variety of industrial settings, in fact more than what you could have thought of! The perfect examples of where they’re used would be in:

• Manufacturing plants,
• Shipyards and Shipbuilding Sectors
• Construction or Structural Sites
• Industrial Rigs and Coal Mines
• Energy and Oil Sectors

Since they are used to rotate workpieces during the welding process, it allows a better, more efficient and more accurate welding. Let’s dive deeper and more thoroughly to the industries that actually make use of welding turntables.

Industries That Use Weld Turntables

We touched up on the businesses and types of industries that use welding turntables, but let’s try to divert and distinctively discuss our focus on the ones that truly make use of it.

Heavy Equipment Manufacturing

Heavy equipment manufacturing is the industry that deals with the manufacturing or the production of machines and equipment that are heavy and usually auxiliary. These can be anything from cranes, excavators, compactors, bulldozers, dump trucks, and other equipment that are used for transportation or for other closely-related heavily-induced tasks and activities as well.

Pressure Vessel Industry

This industry is simple to understand, as they only make and manufacture pressure vessels. These vessels are tanks or containers that are gigantic in size and are typically used for industrial and chemical purposes.

Mining

Lastly would be mining. The mining industry involves a ton of heavy machinery and equipment – it’s not like the usual single-person mining where pickaxes are used! To create certain components and machines that would complement the mining process, welding turntables are typically used to achieve this faster and more efficiently.

These are the top three (3) industries that utilize welding turntables to their advantage!

Others would include:

• Pipe and Tube Fabrication
• Skyscraper Construction
• Scaffolding Industry
• Automotive and Aerospace Industries
• And Many More!

NOTE: As you could have noticed, most, if not all these industries involve the use of heavy machinery. The reason for this is because welding turntables are actually effective in handling machines that could be too much for workers to handle.

What Are Rotary Positioner Tables?

A rotary positioner table is a term used to describe welding turntables. Rotary, meaning that it rotates and a positioner table where it’s a machine used for welding go well together.

They are the same, just different terminologies. Some shops and manufacturers use welding turntables while some use rotary positioner tables.

So, don’t be confused when you encounter any of the terms!

Why Use Rotary Positioner Tables?

A lot of businesses see rotary positioner tables as an asset to their company mainly because it can aid in multiple tasks and projects. From the different sizes of welding turntables you can use, there are particulars on why businesses choose them for their projects.

Mainly, the reason why they’re used is because of its functionality. Other specific reasons would include:

Your Welders and Projects Are Safer and More Secure

With a turntable, you won’t be troubled by the constant misalignment and repositioning of the workpiece or weldment. They’ll stay put and stagnant to the table as the table circles them back and forth, keeping both the welder and the workpiece in a safer state.

You Greatly Decrease Worker Fatigue

Turntables allow your welder to focus more on the art of welding and the style rather than ensuring that the workpiece doesn’t get misaligned. This causes a positive chain effect where the worker gets an easier job and they get tired less.

You Increase Productivity

The majority of industrial juggernauts always have welding turntables, why? Because they wouldn’t be able to process thousands of products monthly if they do everything manually. With a welding turntable, you increase productivity as you can lay out a weldment or a workpiece flat on the table while welders work on it.

If you have a large turntable, then, you can also mount more than one (1) workpiece there!

You Achieve Better and Higher Weld Quality

Last but most definitely not least – and probably one of the best reasons to use a weld turntable is that it can guarantee a better and higher quality of weld to the workpiece or the product. Why? Because instead of having your welder check on how the workpiece is positioned, they’ll be able to focus more on doing accurate welds.

Rotary positioner tables or welding turntables have been a goldmine for businesses and companies that perform welding. Take advantage of it while you can!

What is a 3-Axis L-Type Rotary Weld Positioner?

A 3-axis L-Type rotary welding positioner is one of the many advancements of weld positioners where it moves in three (3) different ways: left & right, up & down, as well as forward & backward. The clue there is the “3-axis” where multiple ways of movement is allowed and possible.

It’s called an L-Type positioner because of the case or the frame – it’s shaped as the letter “L.”

What is a Benchtop Welding Positioner?

A benchtop welding positioner or welding turntable is a small-sized positioner that’s designed to be placed on top of a workbench or a desk. They’re typically used for the purpose of fast welding small-to-medium-sized workpieces and are also handy for a couple of tasks, such as:

• Gluing
• Painting
• Grinding
• Chipping
• Cutting
• Edging

Thanks to its consistent circular movement, it’s able to provide you with the necessary positions you need in order for a welder to have better and easier welding experiences.

Where’s the Best Place to Get High-Quality Welding Turntables?

The best welding turntables can be found in the west, but, the price of those will be like a rip-off. However, if you want a good and high-quality welding turntable without actually stressing out on the price, going with a Chinese welding turntable manufacturing company will be your best bet.

Chinese manufacturers of these welding turntables are considered the next-best option, when, in fact, some southeast Asian countries consider Chinese suppliers and manufacturers the best.

Why is MISA Welding the Best With Welding Turntables

It doesn’t matter what type of welding or construction project you have in your list. If you are looking for superior-quality welding equipment, MISA Welding will never fail to deliver.

Being an expert in the industry for over 20 years molded us to be the company we are today.  We’ve been trusted in over 21 countries and it’s still expanding up until this day. We’ve produced a wide array of welding turntables (of many different kinds) to construction businesses, developers, industrial rigs, oil rigs, and many other companies and organizations worldwide.

From custom rotary welding positioner tables to TIG welding tables and benchtop turntables, we can be your one-stop shop.

While we are considered the best when it comes to welding turntables, you can also bank and count on us if you ever find yourself in need of welding rotators, H-Beam Production Lines, CNC Plasma & Flame Cutting Machines, welding positioners, weld manipulators, and many more!

MISA Welding will deliver world-class quality service, high-quality products, and superior customer experience to all our clients, regardless of where you are in the world!

All the specifications and customizations you’re looking for in your welding turntable, you can bank and count on us here at MISA Welding!

Why Choose MISA Welding?

Out of the hundreds – even thousands of manufacturers in the market today, none of them are able to match the quality of our products, services, as well as our customer service or experience. We have dedicated the majority of our lives in providing the best possible quality of products to our clients wherever they may be.

• We have a Research & Development (R&D) team ready to provide you with updates about your innovation
• Our company received multiple certifications of compliance in various standards globally
• We have excellent pre and after-sales services available to everyone who we will be working with
• All our products are OEM and are sourced from China’s top suppliers and manufacturers
• We have excellent integration and manuals that would guide you through installation and operation
• Our combined company experience is 70+ years – all for you!

So, if you are looking for world-class quality welding turntables that you’ll never be disappointed with, don’t hesitate to give us a call or shoot us a message via WeChat, WhatsApp, or our email!

Our attendees will get to your inquiry within hours and you will receive a rough estimate of the products and services you’re looking for.

Reach out to us and get a free quote within hours!
