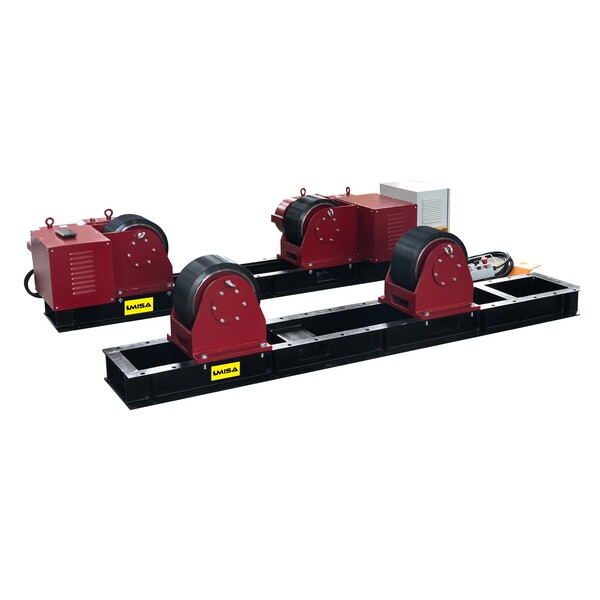

MISA MCR-20 Conventional Welding Rotator feature all-fabricated-steel base construction with wheel brackets that can be manually positioned to accommodate vessels of varying diameters around a constant center-line. Vessel rotation is via a two-motor, two-wheel-drive system which eliminates the need for torque tubes. Drive motors are inverter-controlled variable-frequency AC-type, protected by a cover shell and are fully enclosed for trouble-free operation.
20 Ton Drive/Idler Rotator Set S.W.L Capacity
500mm to 3500mm Vessel Diameter Range
Polyurethane Wheels
Bolt or Screw Adjust Roller Spacing
Wired Remote and Wireless Remote Optional
Lifting Rings and Forklift Slots
CE/ UKCA/ CSA/ SGS
Specification
| Model | MCR-20 Conventional Welding Rotator (Drive & Idler) |
| Load Carrying Capacity, Drive | 10 ton maximum |
| Load Carrying Capacity, Idler | 10 ton maximum |
| Load Carrying Capacity, Set | 20 ton maximum (1 Drive & 1 Idler) |
| Rotation Capacity, Drive Roll | 20 ton maximum |
| Vessel Diameter Capacity | 19.7in to 137.7in (500 mm to 3500 mm) |
| Rotation Speed Range | 4.7 to 47.0 in/min (120 to 1200 mm/min) |
| Tire Type | Polyurethane, A95 durometer rating |
| Wheel Size | 13.8in diameter x 7in wide (Ø350x180mm) |
| Control Pendant | Wired 26ft (8m) cable + Optional Wireless (FWD/Stop/REV/Speed control/Emergency stop) |
| Rotation Drive Motors | 2 x 0.75 kW |
| Primary Input Power | 220-480v, 50/60hz., 3ph |
| Input Current at Rated Load | 4.0 A |
| Weight, Drive | 1433 lb (650 kg) |
| Weight, Idler | 771 lb (350 kg) |
| Control Box Ingress Protection Rating | IP 54 |
