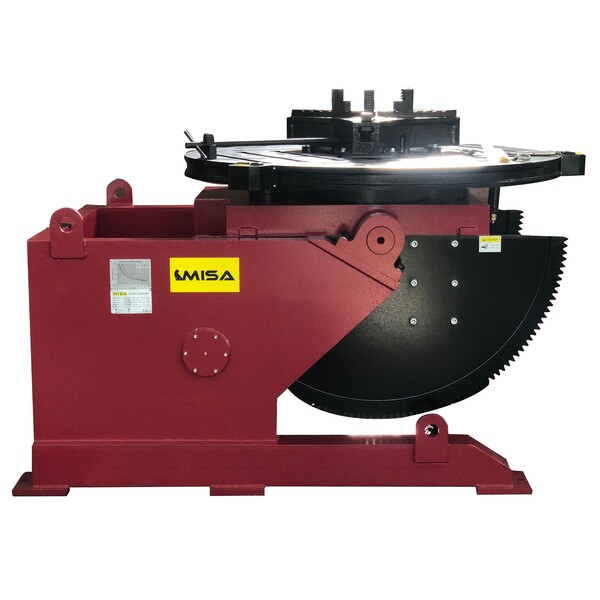

MISA MWP-50 Standard Welding Positioner feature all-fabricated-steel base construction. Tilting gear been quenched,ensure the strength. Rapid braking piece can in any position locking stability. With Slewing ring, ensure the safety and stable. The worktable is tilted by motor, accurate and reliable positioning. All electric conversion is frequency, so getting the big range of speed.
5Ton S.W.L Capacity
1500mm Table Diameter
0-120 Degree Tilting
2 Axis Rotation & Tilting
Wired Remote & Foot Panel / Wireless Remote Optional
CE/ UKCA/ CSA/ SGS
Specification
| Model | MWP-10 Standard Welding Positioner |
| Load Carrying Capacity | 11023 lb (5000 kg) maximum |
| Rotation Capacity | 11023 lb (5000 kg) maximum |
| Tilting Capacity | 11023 lb (5000 kg) maximum @ 90 degree |
| Table Diameter | 59 in (1500 mm) |
| Rotation Speed Range | 0.08-0.8 rpm |
| Control Pandent | Wired 26ft (8m) cable + Foot Panel 19ft (6m) cable (FWD / Stop / REV / Speed control / Tilt up / Tilt down / Emergency stop) |
| Rotation Drive Motor | 1.5 kw |
| Titlting Motor | 2.2 kw |
| Max Gravity height | 7.87 in (200 mm) |
| Max centroid eccentricity | 7.87 in (200 mm) |
| Primary Input Power | 220-480v,50/60hz.,3ph |
| Input Current at Rated Load | 10.0 A |
| Weight | 6173 lb (2800 kg) |
| Control Box Ingress Protection Rating | IP 54 |
