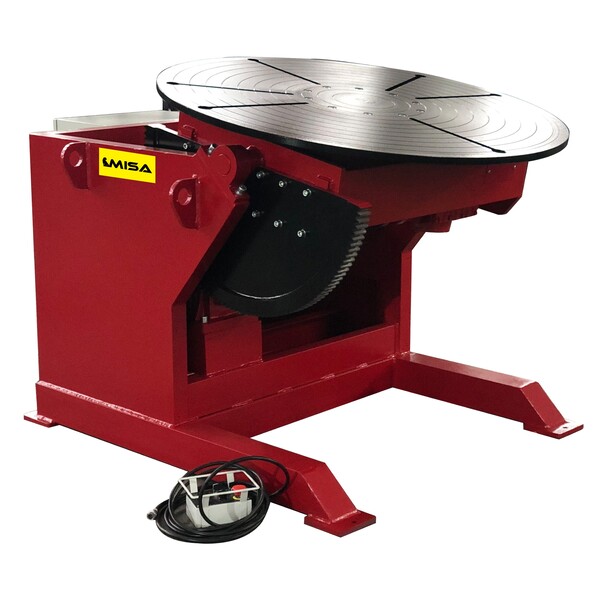

MISA MWP-10 Standard Welding Positioner feature all-fabricated-steel base construction. Tilting gear been quenched,ensure the strength. Rapid braking piece can in any position locking stability. With Slewing ring, ensure the safety and stable. The worktable is tilted by motor, accurate and reliable positioning. All electric conversion is frequency, so getting the big range of speed.
1Ton S.W.L Capacity
1200mm Table Diameter
0-120 Degree Tilting
2 Axis Rotation & Tilting
Wired Remote & Foot Panel / Wireless Remote Optional
CE/ UKCA/ CSA/ SGS
Specification
| Model | MWP-10 Standard Welding Positioner |
| Load Carrying Capacity | 2204 lb (1000 kg) maximum |
| Rotation Capacity | 2204 lb (1000 kg) maximum |
| Tilting Capacity | 2204 lb (1000 kg) maximum @ 120 degree |
| Table Diameter | 47.24 in (1200 mm) |
| Rotation Speed Range | 0.12-1.2 rpm |
| Control Pandent | Wired 26ft (8m) cable + Foot Panel 19ft (6m) cable (FWD / Stop / REV / Speed control / Tilt up / Tilt down / Emergency stop) |
| Rotation Drive Motor | 0.75 kw |
| Titlting Motor | 1.5 kw |
| Max Gravity height | 7.87 in (200 mm) |
| Max centroid eccentricity | 7.87 in (200 mm) |
| Primary Input Power | 220-480v,50/60hz.,3ph |
| Input Current at Rated Load | 5.0 A |
| Weight | 2425 lb (1100 kg) |
| Control Box Ingress Protection Rating | IP 54 |
