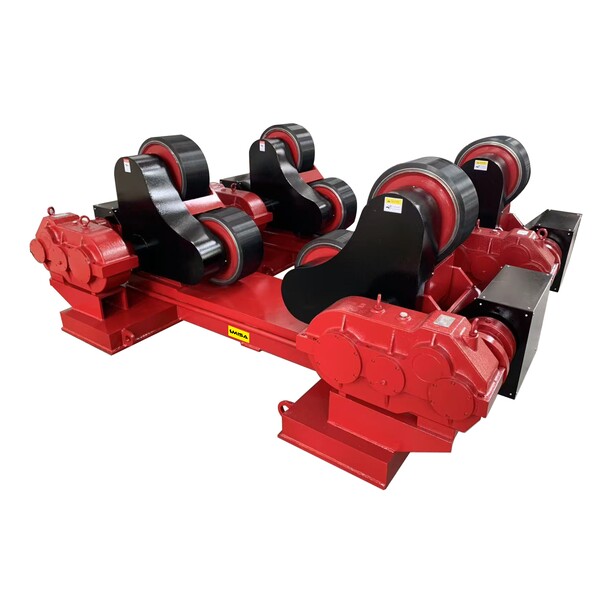

MISA MSAR-60 Self-aligning Welding Rotator feature all-fabricated-steel base construction with wheel brackets that can automatic positioning to accommodate vessels of varying diameters around a constant center-line. Vessel rotation is via a two-motor, two-wheel-drive system which eliminates the need for torque tubes. Drive motors are inverter-controlled variable-frequency AC-type, protected by a cover shell and are fully enclosed for trouble-free operation.
60 Ton Drive/Idler Rotator Set S.W.L Capacity
750mm to 4500mm Vessel Diameter Range
Polyurethane Wheels
Automatic Adjust Roller Spacing
Wired Remote and Wireless Remote Optional
Lifting Rings and Forklift Slots
CE/ UKCA/ CSA/ SGS
Specification
| Model | MSAR-60 Self-aligning Welding Rotator (Drive & Idler) |
| Load Carrying Capacity, Drive | 30 ton maximum |
| Load Carrying Capacity, Idler | 30 ton maximum |
| Load Carrying Capacity, Set | 60 ton maximum (1 Drive & 1 Idler) |
| Rotation Capacity, Drive Roll | 60 ton maximum |
| Vessel Diameter Capacity | 29.5in to 137.7in (750 mm to 4500 mm) |
| Rotation Speed Range | 4.7 to 47.0 in/min (120 to 1200 mm/min) |
| Tire Type | Polyurethane, A95 durometer rating |
| Wheel Size | 17.7in diameter x 7.8in wide (Ø450x200mm) |
| Control Pendant | Wired 26ft (8m) cable + Optional Wireless (FWD/Stop/REV/Speed control/ Emergency stop) |
| Rotation Drive Motors | 2 x 2.2 kW |
| Primary Input Power | 220-480v,50/60hz.,3ph |
| Input Current at Rated Load | 10.0 A |
| Weight, Drive | 4299 lb (1950 kg) |
| Weight, Idler | 2425 lb (1100 kg) |
| Control Box Ingress Protection Rating | IP 54 |
