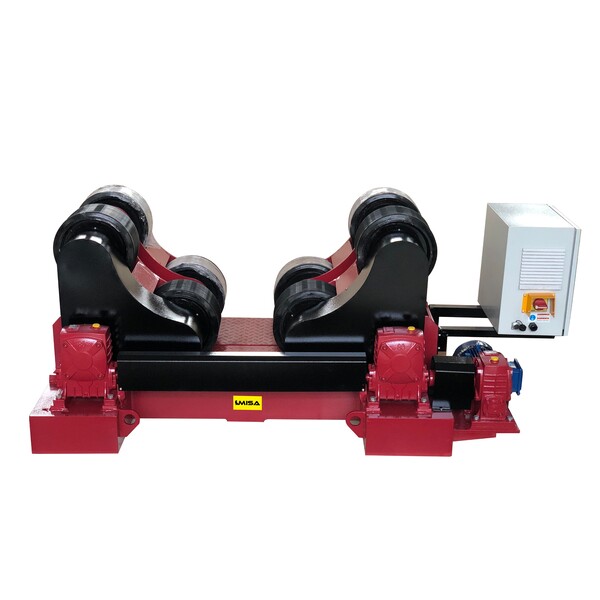

MISA MSAR-20 Self-aligning Welding Rotator feature all-fabricated-steel base construction with wheel brackets that can automatic positioning to accommodate vessels of varying diameters around a constant center-line. Single drive with three gearbox , ensure the focus balance of the Rotator. Drive motors are inverter-controlled variable-frequency AC-type, protected by a cover shell and are fully enclosed for trouble-free operation.
20 Ton Drive/Idler Rotator Set S.W.L Capacity
500mm to 3500mm Vessel Diameter Range
Polyurethane Wheels
Automatic Adjust Roller Spacing
Wired Remote and Wireless Remote Optional
Lifting Rings and Forklift Slots
CE/ UKCA/ CSA/ SGS
Specification
| Model | MSAR-20 Self-aligning Welding Rotator (Drive & Idler) |
| Load Carrying Capacity, Drive | 10 ton maximum |
| Load Carrying Capacity, Idler | 10 ton maximum |
| Load Carrying Capacity, Set | 20 ton maximum (1 Drive & 1 Idler) |
| Rotation Capacity, Drive Roll | 20 ton maximum |
| Vessel Diameter Capacity | 19.7in to 137.7in (500 mm to 3500 mm) |
| Rotation Speed Range | 4.7 to 47.0 in/min (120 to 1200 mm/min) |
| Tire Type | Polyurethane, A95 durometer rating |
| Wheel Size | 13.8in diameter x 7in wide (Ø350x180mm) |
| Control Pendant | Wired 26ft (8m) cable + Optional Wireless (FWD/Stop/REV/Speed control/Emergency stop) |
| Rotation Drive Motors | 1.5 kW |
| Primary Input Power | 220-480v,50/60hz.,3ph |
| Input Current at Rated Load | 4.0 A |
| Weight, Drive | 2601 lb (1180 kg) |
| Weight, Idler | 1433 lb (650 kg) |
| Control Box Ingress Protection Rating | IP 54 |
