MSAF-20

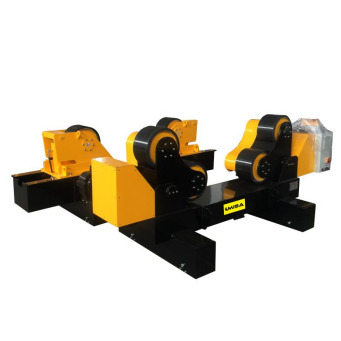

MISA MSAF-20 Fit Up Pipe Growing Line feature all-fabricated-steel base construction with wheel brackets that can be manually positioned to accommodate vessels of varying diameters around a constant center-line. Vessel rotation is via a two-motor, two-wheel-drive system which eliminates the need for torque tubes. Drive motors are inverter-controlled variable-frequency AC-type, protected by a cover shell and are fully enclosed for trouble-free operation. 2 hydraulic rollers driven by pump station

Machine Features
  • 20 Ton Drive/Idler Rotator Set S.W.L Capacity

  • Hydraulic lifting

  • Polyurethane Wheels, Automatic Adjust Roller Spacing

  • 500mm to 4200mm Vessel Diameter Range

  • Wired Remote and Wireless Remote Optional

  • CE/ UKCA/ CSA/ SGS
