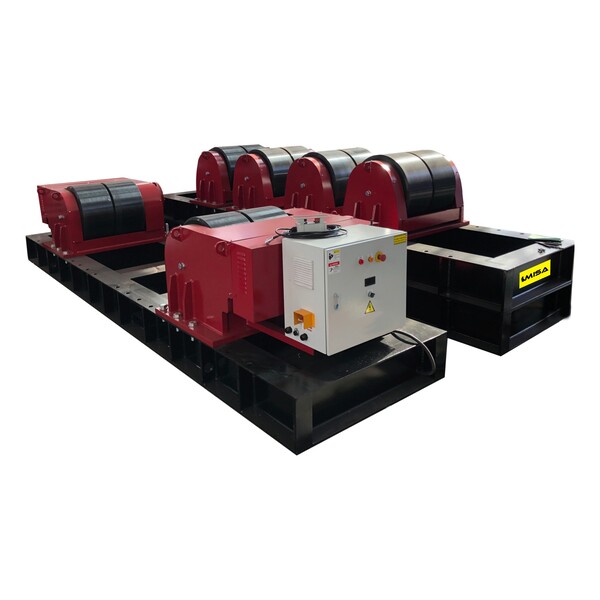

MISA MCR-100 Conventional Welding Rotator feature all-fabricated-steel base construction with wheel brackets that can be manually positioned to accommodate vessels of varying diameters around a constant center-line. Vessel rotation is via a two-motor, two-wheel-drive system which eliminates the need for torque tubes. Drive motors are inverter-controlled variable-frequency AC-type, protected by a cover shell and are fully enclosed for trouble-free operation.
100 Ton Drive/Idler Rotator Set S.W.L Capacity
800mm to 5000mm Vessel Diameter Range
Polyurethane Wheels
Bolt or Screw Adjust Roller Spacing
Wired Remote and Wireless Remote Optional
Lifting Rings and Forklift Slots
CE/ UKCA/ CSA/ SGS
Specification
| Model | MCR-100 Conventional Welding Rotator (Drive & Idler) |
| Load Carrying Capacity, Drive | 50 ton maximum |
| Load Carrying Capacity, Idler | 50 ton maximum |
| Load Carrying Capacity, Set | 100 ton maximum (1 Drive & 1 Idler) |
| Rotation Capacity, Drive Roll | 100 ton maximum |
| Vessel Diameter Capacity | 31.5in to 196.8in (800 mm to 5000 mm) |
| Rotation Speed Range | 4.7 to 47.0 in/min (120 to 1200 mm/min) |
| Tire Type | Polyurethane, A95 durometer rating |
| Wheel Size | 19.7in diameter x 15.7in wide (Ø500x400mm) |
| Control Pendant | Wired 26 ft (8m) cable + Optional Wireless (FWD/Stop/REV/Speed control/ Emergency stop) |
| Rotation Drive Motors | 2 x 3.0 kW |
| Primary Input Power | 220-480v,50/60hz.,3ph |
| Input Current at Rated Load | 16.0 A |
| Weight, Drive | 5621.8 lb (2550 kg) |
| Weight, Idler | 3196.7 lb (1450 kg) |
| Control Box Ingress Protection Rating | IP 54 |
